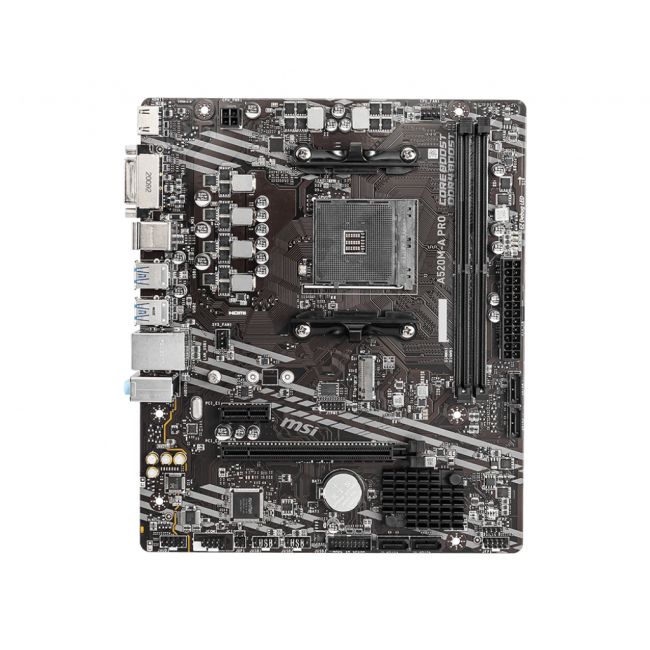

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
FULLY FAN CONTROL
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
EZ DEBUG LED
Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.
DOUBLE ESD PROTECTION
ULTIMATE MOTHERBOARD PROTECTION
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
USB 3.2 GEN 1
Transfer lots of data, music and movies over USB easier. USB 3.2 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 devices.
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.
A HUGE STEP OF DDR PERFORMANCE
MSI OC LAB does not merely work hard on extreme overclocking. Compared to A320 motherboard memory A-XMP profile, MSI does have great improvement on performance and efficiency for A520 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability.
CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
| Weight & dimensions |
| Width |
236 mm |
| Depth |
200 mm |
| Height |
60 mm |
| Memory |
| ECC |
Y |
| Maximum internal memory |
64 GB |
| Non-ECC |
Y |
| Supported memory clock speeds |
1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz |
| Supported memory types |
DDR4-SDRAM |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Unbuffered memory |
Y |
| Number of memory slots |
2 |
| Processor |
| Compatible processor series |
3rd Generation AMD RyzenΓäó 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD RyzenΓäó 7, 3rd Generation AMD RyzenΓäó 9 |
| Maximum number of SMP processors |
1 |
| Processor socket |
Socket AM4 |
| Processor manufacturer |
AMD |
| Rear panel I/O ports |
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| DVI-D ports quantity |
1 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Internal I/O |
| USB 2.0 connectors |
2 |
| CPU fan connector |
Y |
| ATX Power connector (24-pin) |
Y |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
2 |
| Front panel audio connector |
Y |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
4 |
| Front panel connector |
Y |
| Network |
| LAN controller |
Realtek RTL8111H |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Y |
| Wi-Fi |
N |
| Expansion slots |
| PCI Express x1 (Gen 3.x) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| Other features |
| Weight |
698 g |
| Graphics |
| Maximum resolution |
4096 x 2160 pixels |
| Number of displays supported |
2 |
| Features |
| Motherboard form factor |
micro ATX |
| Motherboard chipset |
AMD A520 |
| Audio output channels |
7.1 channels |
| Motherboard chipset family |
AMD |
| Component for |
PC |
| Number of mounting holes |
8 |
| Audio chip |
Realtek ALC892 |
| Harmonized System (HS) code |
84733020 |
| Storage controllers |
| RAID levels |
0, 1, 10 |
| Number of HDDs supported |
5 |
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
PCI Express 3.0, SATA |
