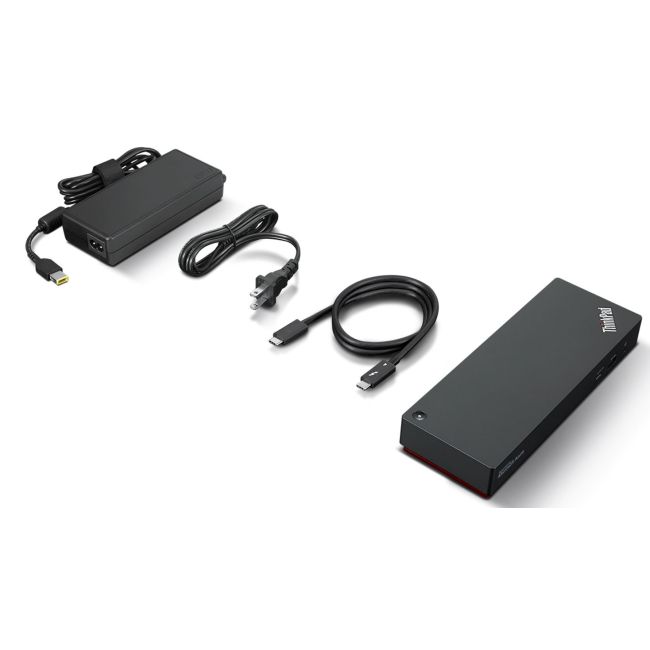

Lenovo ThinkPad Universal Thunderbolt 4 Smart Dock Wired Black

A SMARTER WAY TO WORK. The robust way to maximize productivity and the workspace, the Lenovo™ ThinkPad® Universal Thunderbolt™ 4 Smart Dock (40B10 is the leader in our new series of docks offering a smarter way to work. Capable of driving 8k displays and 40Gbps data speeds, the dock ushers in the next generation of Intel® Thunderbolt™ 4 connectivity for commercial users and a new cloud-based management paradigm for IT managers. And it’s all powered by Microsoft Azure Sphere.

Weight & dimensions
Weight	460 g
Depth	80 mm
Height	30 mm
Width	220 mm
Ports & interfaces
DC-in jack	Y
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
Connectivity technology	Wired
Host interface	Thunderbolt 4
Headphone connectivity	3.5 mm
Combo headphone/mic port	Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
DisplayPort version	1.4
Thunderbolt 4 ports quantity	1
Power
Input current	6.75 A
Power source type	DC
Power consumption (max)	100 W
Packaging content
Cables included	AC, Thunderbolt
AC adapter included	Y
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 ┬░C
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Performance
Product colour	Black
Certification	cULus, FCC, ICES, NOM
Data transfer rate	40 Gbit/s
Number of displays supported	4
Maximum refresh rate	60 Hz
Software
Windows operating systems supported	Y
Packaging data
Package weight	1.23 kg
Package depth	195 mm
Package height	85 mm
Package width	270 mm
