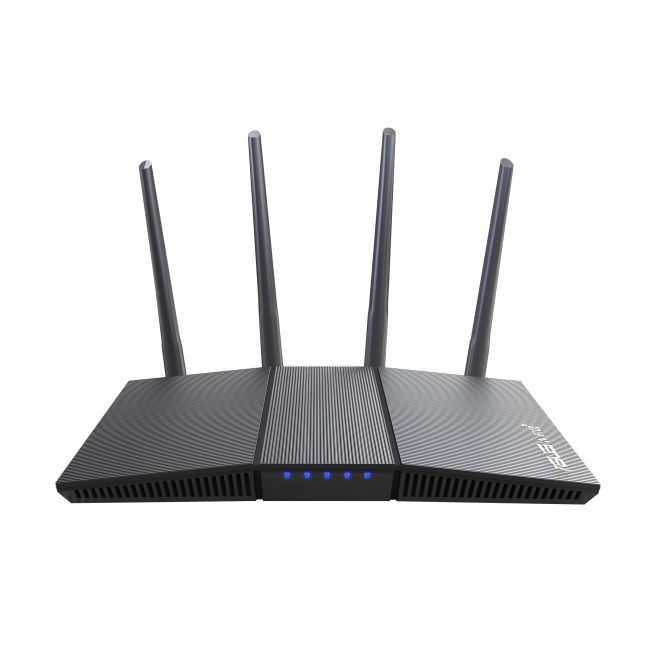

AX1800 Dual Band WiFi 6 (802.11ax) Router supporting MU-MIMO and OFDMA technology, with AiProtection Classic network security powered by Trend MicroΓäó
Get Your Home Ready for WiFi 6 (802.11ax)
The growing number of connected personal and IoT devices has led to an overall increase in network density that is pushing the limits of the current WiFi standard. The latest WiFi 6(802.11ax) standard provides future-proof technologies, higher network efficiency, faster WiFi speeds, greater coverage and improved battery life for connected devices, providing a significantly better networking experience for users.
*It requires 802.11ax-compatible devices to enjoy the benefits brought by WiFi 6(802.11ax) standard.
Next-Gen WiFi Speed
RT-AX1800S is a 2x2 dual-band WiFi router that provides 80MHz bandwidth and 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps ΓÇö 574Mbps on the 2.4GHz band and 1201Mbps on the 5GHz band ΓÇö RT-AX1800S is 1.5X faster than 802.11ac 2x2 dual-band routers.
Built for Multi-device Households
With a revolutionary combination of OFDMA and MU-MIMO technology, 802.11ax technology provides up to 4X greater network capacity and efficiency in traffic-dense environments. Previous-generation 802.11ac WiFi can only handle one device at a time on each network channel, which is an inefficient use of available bandwidth. OFDMA support in the WiFi 6(802.11ax) standard divides each channel into small sub-channels, allowing signals from multiple devices* to be bundled together and transmitted simultaneously, reducing latency for a smoother, more responsive WiFi experience.
Better Battery Life for Your Devices
Target Wake Time (TWT) allows RT-AX1800S to schedule designated intervals for devices to transmit data. This allows them to sleep when there is no need to wait for a router signal, reducing power consumption by up to 7X for significantly improved battery life*.
WiFi that Goes Farther
With the latest WiFi 6(802.11ax) standard featuring OFDMA technology, RT-AX1800S provides increased WiFi signal range and better coverage by dividing each channel into smaller sub-channels. These sub-channels have a smaller bandwidth that enables them to travel up to 80% farther1, resulting in a better WiFi connection throughout your home*.
Protection for your Home Network
RT-AX1800S incorporates ASUS AiProtection, a commercial-grade network security system powered by Trend MicroΓäó Smart Home Network. With AiProtection, all connected devices are protected, even if they have no antivirus capability of their own ΓÇö such as IoT devices. AiProtection blocks common internet-based attacks before they reach the network, and if an infected device is detected on the network, AiProtection instantly blocks it to prevent it sending any personal information to malicious servers.
Connectivity Options
RT-AX1800S has one Gigabit WAN port, 4 Gigabit LAN ports. Smart TV, game consoles, NAS storage devices, backup internet and more can now have their own dedicated ports, making RT-AX1800S your solid digital home hub.
Robust control and optimization with ASUSWRT
With the ASUSWRT dashboard UI, setup, monitor, and control network applications all in one intuitive area. With fast setup, multi-device detection, and flexible settings, ASUSWRT makes the most of your network performance.
*Actual data throughput and WiFi coverage will vary from network conditions and environmental factors, including the volume of network traffic, building material and construction, and network overhead, result in lower actual data throughput and wireless coverage.
| Wireless LAN features |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (max) |
1201 Mbit/s |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
4 |
| DC-in jack |
Y |
| Mobile network |
| 3G |
N |
| 4G |
N |
| 5G |
N |
| Network |
| Ethernet LAN |
Y |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Port forwarding |
Y |
| VPN support |
- VPN Client L2PT
- VPN Client OVPN
- VPN Client PPTP
- VPN Server IPSec
- VPN Server OVPN
- VPN Server PPTP |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Dynamic DNS (DDNS) |
Y |
| Port triggering |
Y |
| Protocols |
| DHCP server |
Y |
| Antenna |
| Antennas quantity |
4 |
| Antenna design |
External |
| Management features |
| Reset button |
Y |
| Quality of Service (QoS) support |
Y |
| WPS push button |
Y |
| Wake-on-LAN ready |
Y |
| Bandwidth control |
Y |
| MU-MIMO technology |
Y |
| MIMO |
Y |
| Security |
| DMZ support |
Y |
| Security algorithms |
WPS |
| Firewall |
Y |
| MAC address filtering |
Y |
| Guest access |
Y |
| System event log |
Y |
| Parental control |
Y |
| Power |
| Power source type |
DC |
| AC input voltage |
110 - 240 V |
| AC input frequency |
50/60 Hz |
| Output voltage |
12 V |
| Output current |
1.5 A |
| Design |
| LED indicators |
LAN, Power, WAN |
| Product colour |
Black |
| Product type |
Tabletop router |
| Features |
| Internal memory |
256 MB |
| Flash memory |
128 MB |
| Works with Amazon Alexa |
Y |
| WAN connection |
| DSL WAN |
N |
| Ethernet WAN |
Y |
| SIM card slot |
N |
| 3G/4G USB modem compatibility |
N |
| Packaging data |
| Number of products included |
1 pc(s) |
| Packaging content |
| AC adapter included |
Y |
| Cables included |
LAN (RJ-45) |
| Quick start guide |
Y |
| Warranty card |
Y |
