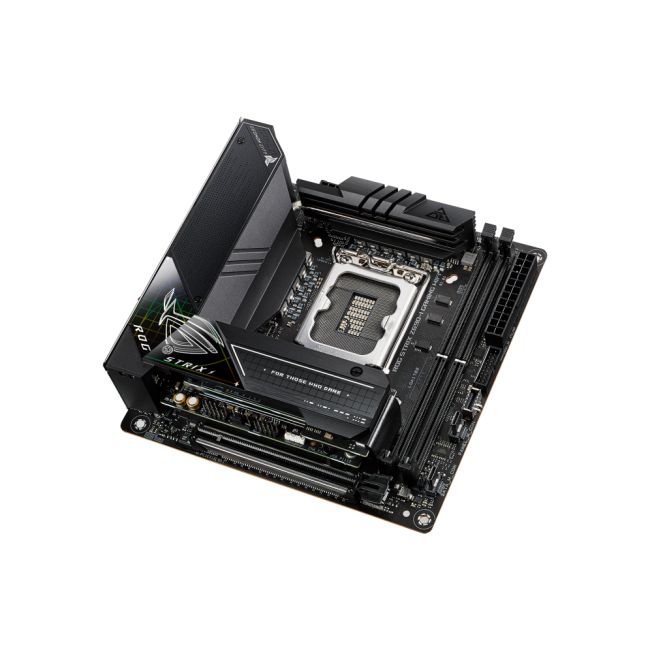

ROG STRIX Z690-I GAMING WIFI
The ROG Strix Z690-I Gaming WiFi packs premium-grade power delivery and triple-decker cooling into a compact mini-ITX form factor to unleash the full force of 12th Gen Intel® Core™ processors. Framerates and load times can be boosted even further by all-new support for DDR5 memory and PCIe® 5.0. Plus, onboard WiFi 6E and PCIe 4.0 M.2 slots bring lightning-fast performance to an endless variety of scenarios. On top of all that, DIY-friendly innovations help simplify the PC building process, so even novice builders can quickly get to serious gaming.
POWER DESIGN
Digital power control and an array of power stages provide the muscle needed to control the latest Intel CPUs.
Integrated I/O Cover and VRM Heatsinks
Connected by an L-shaped heat pipe, the two VRM heatsinks and aluminum I/O cover provide ample mass and surface area to deal with the thermals of IntelΓÇÖs latest processors.
Thermal Pads
Specially engineered thermal pads efficiently transfer heat from the inductor and phase array to the heatsink.
Triple-decker heatsink
The new triple-decker heatsink is cleverly designed to stack two M.2 slots, both with Q-Latch and full-size, double-sided heatsinks with thermal pads. And thereΓÇÖs a beefy chipset heatsink at the bottom to deliver great cooling performance.
COOLER BY DESIGN
ROG Strix Z690 series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS.
CPU Fan Header
A dedicated pair of PWM/DC fan headers for CPU coolers.
AIO Pump Fan Header
A dedicated PWM/DC header for self-contained water-cooling setups.
M.2 Heatsink
Keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.
M.2 Backplate
Provides additional mass to deal with the thermal load of high-performance M.2 drives.
4-Pin PWM/DC Fan Header
Each header supports auto-detection of PWM or DC fans.
*Support ASUS HYDRANODE
ROG Front Panel SATA Card
The ROG Strix Z690-I Gaming WiFi comes with an expansion card that provides additional functionality including four SATA ports, one ARGB lighting header, and connectors for a front panel header and a PC speaker. This efficient use of space enables builders to construct some of the most compact PC builds with full feature, or could also connect the power button via the 2-pin Power_BTN onboard for even more compact builds.
DUAL THUNDERBOLTΓäó 4 PORTS
Mini-ITX systems often find homes in entertainment centers for HTPC duty. The ROG Strix Z690-I Gaming WiFi stands ready with dual ThunderboltΓäó 4 USB C ports on the rear I/O panel whose bidirectional 40 Gbps connectors can handle two external 4K displays at once, plus a variety of other compatible accessories.
WIFI 6E (802.11 AX)
Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It provides up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments.
*WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.
Intel 2.5 Gb Ethernet
Onboard 2.5 Gb Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.
SUPREMEFX
ROG SupremeFX is a unique blend of hardware and software that provides superior audio. In ROG Strix Z690-I Gaming WiFi, SupremeFX features the ALC4080 codec to increase playback resolution from 192 kHz to 384 kHz across all channels. The front-panel output is streamed through a highly integrated Savitech amplifier thatΓÇÖs capable of driving of a wide variety of gaming headsets and high-fidelity headphones.
UNDENIABLY ROG STRIX
The ROG Strix Z690-I Gaming WiFi design language is defined by futuristic grids and meshes that may seem low-key at first, until users gaze upon the lower left-hand corner that glows with an iridescent grid pattern.
HEATSINK DESIGN WITH EASY DIY IN MIND
To enable a smooth DIY experience, two stacked M.2 slots are secured by a connector and a set of screws.
M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
CLR CMOS BUTTON
A quick press of the Clr CMOS button helps reset BIOS settings. It can also be used to reboot the PC if incorrect BIOS settings have been selected.
BIOS FLASHBACKΓäó BUTTON
BIOS FlashBackΓäó is the simplest and safest way to update BIOS. Simply drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, and plug it into the USB BIOS FlashBack port and press the button. Updates can even be performed without having memory or a CPU installed.
Q-LED
Onboard LEDs indicate power status or issues with the CPU, memory, graphics card or boot device.
CERTIFIED COMPATIBILITY
ROG Strix motherboards undergo an extensive certification program to ensure compatibility with the widest range of components and devices. Our Qualified Vendor List (QVL) provides a reference for identifying guaranteed-compatible components and memory.
ASUS AIO coolers are also compatible with a wide variety of CPUs, up to and including 12th Gen Intel processors, giving you ultimate flexibility to cool the CPU that fits your needs.
THE ROG STRIX ECOSYSTEM AWAITS
Level up your game with ROG Strix. Enjoy complementary aesthetics, control and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
SONIC STUDIO III
ROG Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
DTS: SOUND UNBOUND
ROG Strix Z690 motherboards are pre-loaded with the DTS® Sound Unbound™ app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By leveraging Windows Sonic spatial technology, DTS Sound Unbound delivers audio in a virtual 3D space — putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep or other sound in your virtual environment.
* DTS Sound Unbound requires in-game support. Check with game developers for supported titles.
AIDA64 EXTREME
ROG Strix Z690 motherboards include an AIDA64 Extreme 60 days free trial. This industry-leading system information tool provides detailed information about installed hardware and software, and it also provides benchmarks for measuring performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the OLED panels of ROG AIO liquid coolers*.
*Support available for ROG Ryujin II and selected models.
ARMOURY CRATE
Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury CrateΓÇÖs Fan Xpert4 tool provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers.
You can also use Armoury Crate to download drivers, software and user manuals, register products, and tap into a special news feed that connects you to the global ASUS gaming community.
*Windows 10 required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.
| Weight & dimensions |
| Width |
170 mm |
| Depth |
170 mm |
| Memory |
| Maximum internal memory |
64 GB |
| Supported memory clock speeds |
6400 MHz |
| Supported memory types |
DDR5-SDRAM |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Processor |
| Compatible processor series |
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G |
| Processor socket |
LGA 1700 |
| Processor manufacturer |
Intel |
| Rear panel I/O ports |
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| S/PDIF out port |
Y |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB4 Gen 3x2 ports quantity |
2 |
| Internal I/O |
| USB 2.0 connectors |
1 |
| CPU fan connector |
Y |
| ATX Power connector (24-pin) |
Y |
| Number of chassis fan connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
4 |
| EPS power connector (8-pin) |
Y |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| 12V power connector |
Y |
| RGB LED pin header |
Y |
| Network |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Bluetooth |
Y |
| Bluetooth version |
5.2 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| Ethernet LAN |
Y |
| Wi-Fi |
Y |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Expansion slots |
| Number of M.2 (M) slots |
2 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| Packaging content |
| Cables included |
SATA |
| Drivers included |
Y |
| BIOS |
| BIOS type |
UEFI AMI |
| BIOS memory size |
256 Mbit |
| Other features |
| Weight |
880 g |
| Packaging content |
1 x ROG USB2.0 splitter cable
1 x Panel Cable
2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package(s)
1 x ROG key chain
1 x ROG logo plate stickers
1 x ROG Strix stickers
1 x ROG Strix thank you card
1 x Support DVD
1 x User guide |
| Graphics |
| Parallel processing technology support |
Not supported |
| Features |
| Motherboard form factor |
mini ITX |
| Motherboard chipset |
Intel Z690 |
| Audio output channels |
7.1 channels |
| Motherboard chipset family |
Intel |
| Component for |
PC |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Audio chip |
Realtek ALC4080 |
| Harmonized System (HS) code |
84733020 |
| Storage controllers |
| RAID levels |
0, 1, 5, 10 |
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
M.2, SATA |
| RAID support |
Y |
