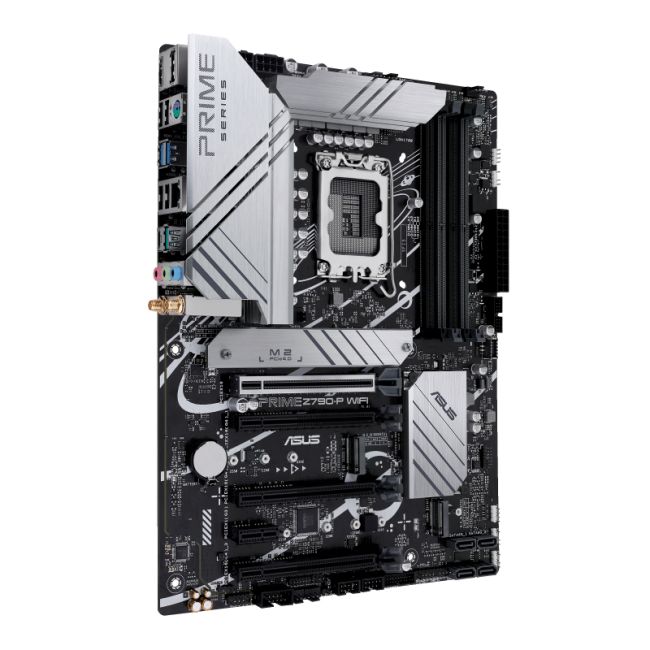

PRIME Z790-P WIFI
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790-P WIFI motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
COOLING
PRIME Z790-P WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
M.2 Heatsink
An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers.
VRM Heatsinks and Thermal Pads
The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance.
Cooler by Design
PRIME Z790-P WIFI features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.
Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
AIO Pump Header
A dedicated PWM/DC header for self-contained water-cooling setups.
PERFORMANCE
The PRIME Z790-P WIFI motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
Robust Power Design
Stable power is essential to extract every last bit of performance out of Intel processors. The PRIME Z790-P WIFI is geared to cater to the demands of these high-core-count CPUs.
ProCool Connectors
Proprietary connectors augment the motherboard's link to the PSU with 4 + 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
Outstanding Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything youΓÇÖve ever experienced.
| Weight & dimensions |
| Width |
305 mm |
| Depth |
234 mm |
| Height |
40 mm |
| Memory |
| Maximum internal memory |
128 GB |
| Non-ECC |
Y |
| Supported memory clock speeds |
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz |
| Supported memory types |
DDR5-SDRAM |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Unbuffered memory |
Y |
| Number of memory slots |
4 |
| Supported memory clock speed (max) |
7200 MHz |
| Processor |
| Compatible processor series |
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket |
LGA 1700 |
| Supported processor sockets |
LGA 1700 |
| Processor manufacturer |
Intel |
| Rear panel I/O ports |
| PS/2 ports quantity |
1 |
| USB 2.0 ports quantity |
4 |
| Ethernet LAN (RJ-45) ports |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| WiFi-AP antenna jack |
1 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| Line-in |
Y |
| Internal I/O |
| USB 2.0 connectors |
2 |
| S/PDIF out connector |
Y |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| ATX Power connector (24-pin) |
Y |
| Number of chassis fan connectors |
3 |
| Front panel audio connector |
Y |
| TPM connector |
Y |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| Number of SATA III connectors |
4 |
| EPS power connector (8-pin) |
Y |
| Thunderbolt headers |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| 12V power connector |
Y |
| RGB LED pin header |
Y |
| Network |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Bluetooth |
Y |
| Bluetooth version |
5.2 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet LAN |
Y |
| Wi-Fi |
Y |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Expansion slots |
| PCI Express x1 (Gen 3.x) slots |
1 |
| Number of M.2 (M) slots |
3 |
| PCI Express x16 (Gen 4.x) slots |
3 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| Packaging content |
| Cables included |
SATA |
| Drivers included |
Y |
| BIOS |
| BIOS type |
UEFI AMI |
| BIOS memory size |
192 Mbit |
| Clear CMOS button |
Y |
| Other features |
| Weight |
1.03 kg |
| Graphics |
| Parallel processing technology support |
Not supported |
| Features |
| Motherboard form factor |
ATX |
| Motherboard chipset |
Intel Z790 |
| Audio output channels |
7.1 channels |
| Motherboard chipset family |
Intel |
| Component for |
PC |
| Windows operating systems supported |
Windows 10 x64, Windows 11 |
| Power source type |
ATX |
| Storage controllers |
| RAID levels |
0, 1, 5, 10 |
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
M.2, SATA III |
| RAID support |
Y |
| Packaging data |
| Package width |
338 mm |
| Package depth |
273 mm |
| Package height |
68 mm |
| Package weight |
1.68 kg |
